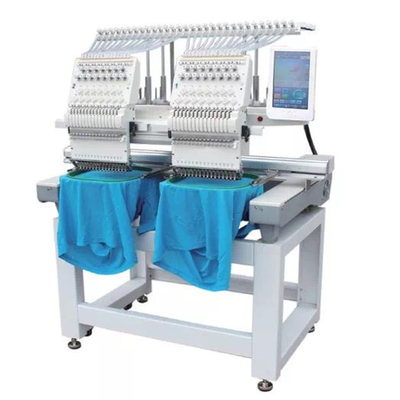

SSL High Speed Flat Embroidery Machine is Suitable for garments fabric and logo embroidery .
|
SPECIFICATIONS FOR CAP/TUBULAR MODEL EMBROIDERY MACHINE
|
|
|
|
|||
|
Control System
|
Computer
|
Dahao
|
A18 / 528 / D56
|
|||
|
|
Motor
|
Dahao
|
servo motors
|
|||
|
|
Power
|
220 v
|
50 HZ
|
|||
|
Main specification
|
Head
|
9/12/15needles
|
jump solenoid / motor
|
|||
|
|
Speed
|
1000 RPM
|
Max 1200 RPM
|
|||
|
|
Area
|
400 mm
|
cap 270 degree
flat 400*450 mm
|
|||
|
Option Parts
|
Device
|
sequins
|
cording
|
|||
|
|
Rotary Hook Size
|
High speed 1.0
|
Jumbo 1.6
|
|||
|
|
Needle Size
|
#11 / 12 / 14
|
Thick #16 / 18
|
|||
1.Computerized embroidery for cap&garments and home textile products.
2.Machine can be used for flat embroidery also ,suitable for small size and logo design,special for customization production.
3.Easy to input the design to machine from designing software as Wilcome /TAJIMA/etc which major used worldwide .
4.Device option:single sequins/twin sequins/4 sequins/simple cording/etc .
1.Special structure design for switching flat to cap&T-shirt etc embroidery easily.
2.Equipped with DAHAO control system ,easy to operate with large designs memory
1.Auto trimmer system ,automatic color changing,support design preview and make-up embroidery and other function .
2.Max flat speed 1200RPM,cap 1000 RPM ,max cap frame rotation range 270°
3.Customized model from single head /double heads to 4/6/8/10 heads,with frame body and wheel design for easy moving .
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
Depand on machine model
|
|
|
|
overlap is avaibale
|
|
|
Packaging Details
|
The normal package is vaccum package
The wooden package is also avaibale for small machine according to customers special request.
Iron support / frames is provided for over lap loading .
|
|
